Question 1

What applications is the NT10000 best suited for?

Accepted Answer

The NT10000 excels in polymer and biopolymer films, optical coatings, nanoparticle dispersions, and early‐stage photovoltaic device prototyping—essentially any process requiring basic ultra-uniform thin films.

Question 2

How do I program and store coating recipes?

Accepted Answer

Use the membrane keypad and LCD to define up to 10 custom spin recipes, each with speed, dwell time, and acceleration/deceleration profiles. Recipes are saved on demand into the internal flash memory.

Question 3

Can I monitor spin speed and duration in real time?

Accepted Answer

Yes. The NT10000’s display shows live RPM and elapsed time throughout the run, so you always know exactly where you are in the process.

Question 4

What is the spin-speed range and its accuracy?

Accepted Answer

The unit operates from 500 to 10 000 RPM with ±1% speed accuracy. Programmable acceleration and deceleration ensure film-thickness uniformity within ±1%.

Question 5

How resistant is the spin bowl to chemicals?

Accepted Answer

The PTFE-coated spin bowl has an ultra-low surface energy finish that resists acids, bases, and organic solvents—making cleaning effortless and preventing cross-contamination.

Question 6

What safety features are included?

Accepted Answer

1. Safety Interlock: Prevents operation unless the chamber lid is securely closed.
2. Over-Speed Protection: Automatically halts the motor if RPM exceeds safe limits.

Question 7

How does the NT10000 handle vibration and stability?

Accepted Answer

Its steel chassis is rigid and vibration-damped, ensuring consistent, uniform coatings even at high speeds.

Question 8

What is the physical footprint and weight?

Accepted Answer

The unit measures 400 × 270 × 300 mm (L × W × H) and weighs 12 kg, making it compact enough for most benchtops while still robust.

Question 9

Is the motor noisy at high speed?

Accepted Answer

No. The whisper-quiet motor runs at < 55 dB even at maximum spin speeds, maintaining a comfortable lab environment.

Question 10

How do I integrate process data with my LIMS or SPC systems?

Accepted Answer

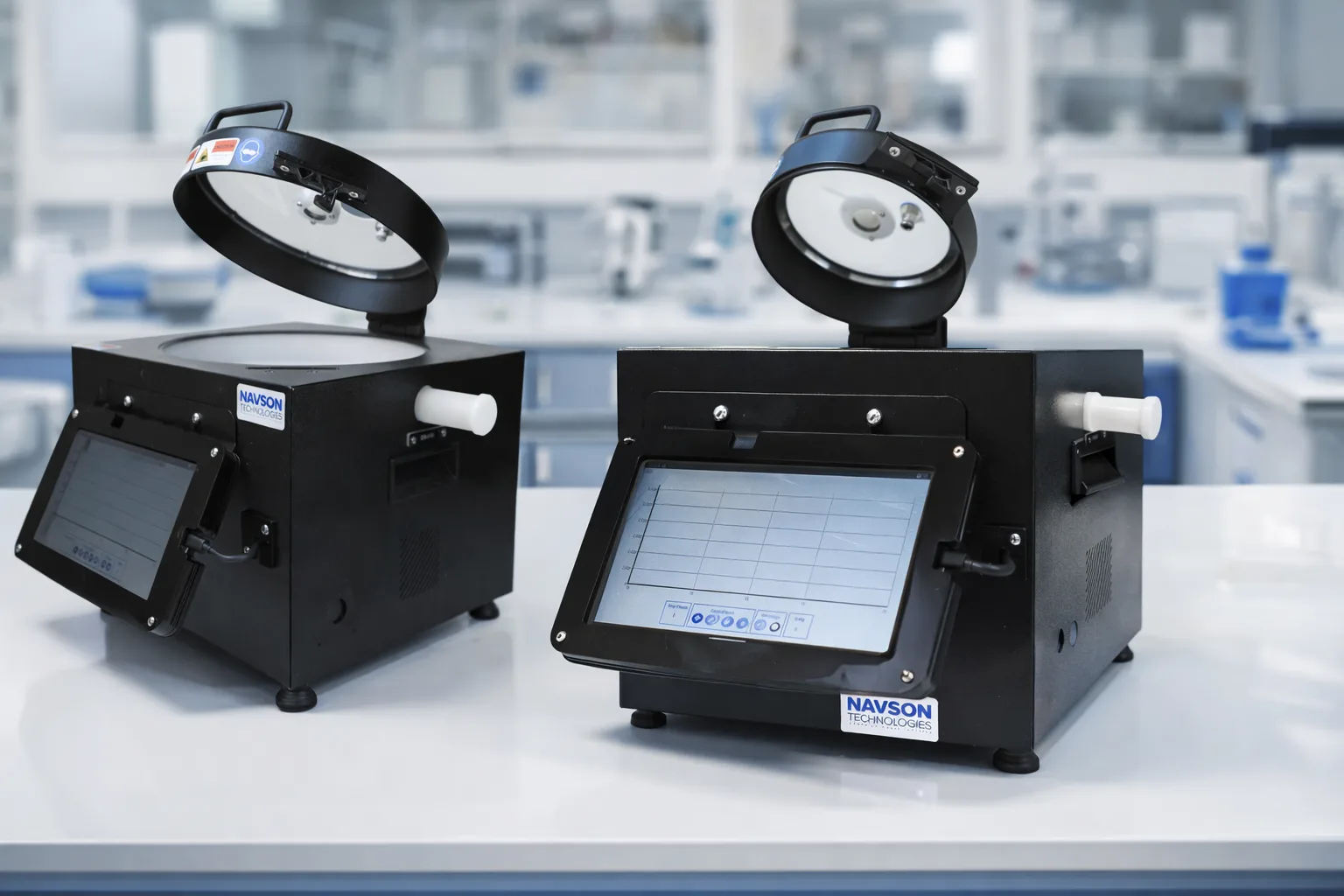

This feature is available in higher models such as the NT12000 & NTCR Series.

Question 11

Loading the substrate

Accepted Answer

Only one single suitable O-Ring must be used in a manner that the substrate completely covers the O-Ring without gaps.

Question 12

Chamber and General Cleaning

Accepted Answer

Use Isopropyl Alcohol (IPA), Acetone, PGMEA (Propylene Glycol Monomethyl Ether Acetate), Deionized (DI) Water, Mild Alkaline Detergent (e.g., 0.0001 % NaOH or Commercial Lab Detergent), Ultrasonic Cleaning (Optional) [For removable components like Chuck]

Feature	Detail
Speed	500 – 10000 rpm
Acceleration	100 – 5000 rpm/s
Drive system	BLDC motor
Standard chuck	1 Vacuum Chuck (10 mm × 10 mm to 2″ dia. substrate)
Drainpipe	At the bottom of working chamber
Housing material	Corrosion‐free powder‐coated sheet metal – glove box compatible
Time per step	1000 seconds
User interface	Keypad with LCD display
Live RPM	Yes
Live Program Time	Yes
Program Steps	100 steps per program
Storage Capacity	20 programs
Substrate holding mechanism	Vacuum, vacuum‐less & hybrid
Substrate size	5 to 150 mm diameter
Optional purchase	Customized chuck (vacuum or vacuum‐less) to hold substrates from 5 to 150 mm dia.
Working chamber material	PTFE‐coated corrosion‐free metal
Working chamber size	8″ diameter × 4″ height
Substrate holding vacuum	650 mmHg maximum

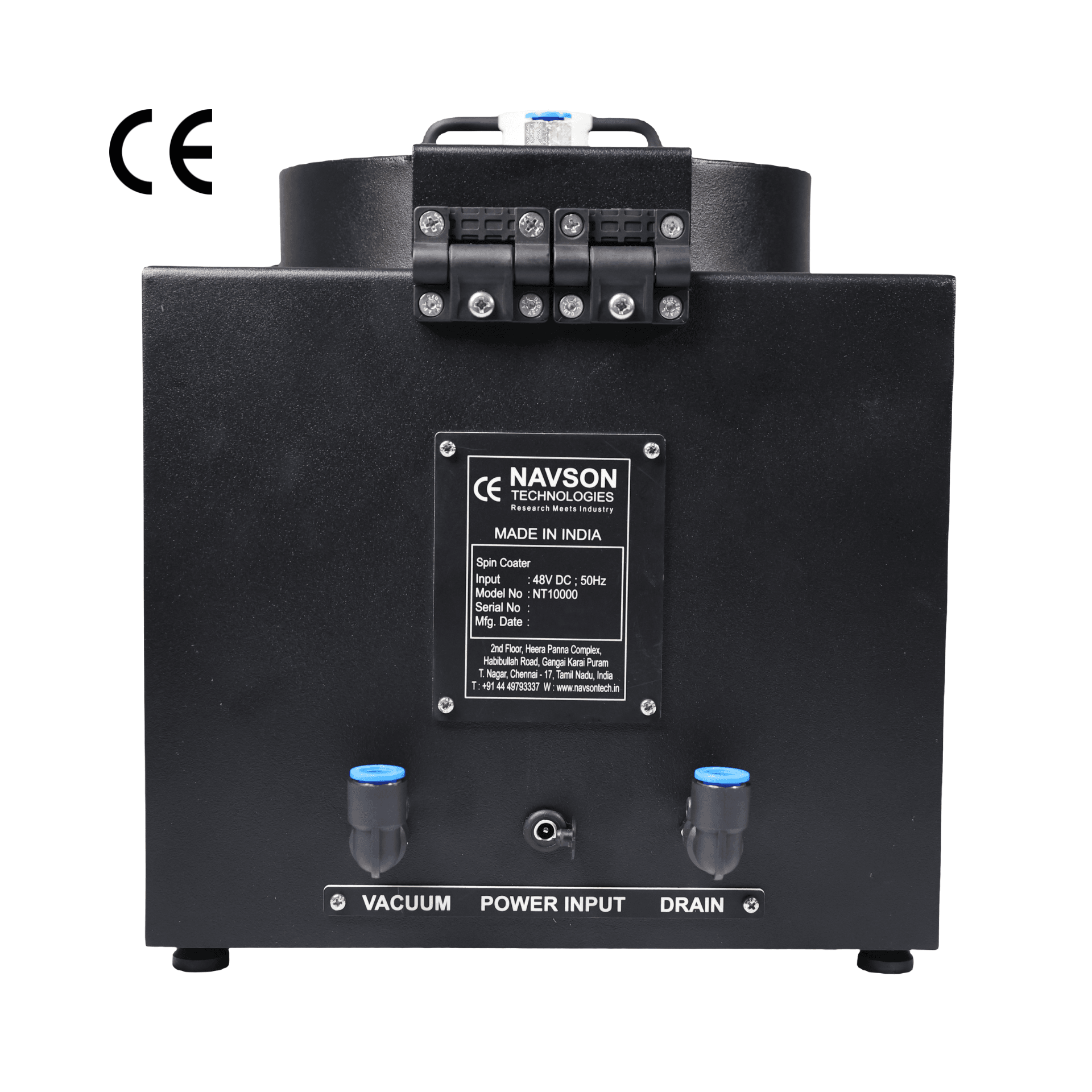

Vacuum connections	10 mm PU hose – 2 m length (default)
Integrated Vacuum switch	Yes (ON/OFF)
Spirit level	External
Safety feature	Lid interlock safety for open cover
Liquid dispensing	Centre hole in the lid for liquid dispensing
Lid material	Transparent
Nitrogen purging	Pneumatic connection in the lid for nitrogen purging
Dimensions (L x B x H)	400 × 270 × 300 mm (excluding drainpipe and user interface protrusion)
Power requirement	220 V AC/50 Hz; DC adapter will be provided
Warranty	12 months warranty with 3 years of support
Installation support	Refer to installation videos (UNPACKING + INSTALLATION + WORKING VIDEOS)

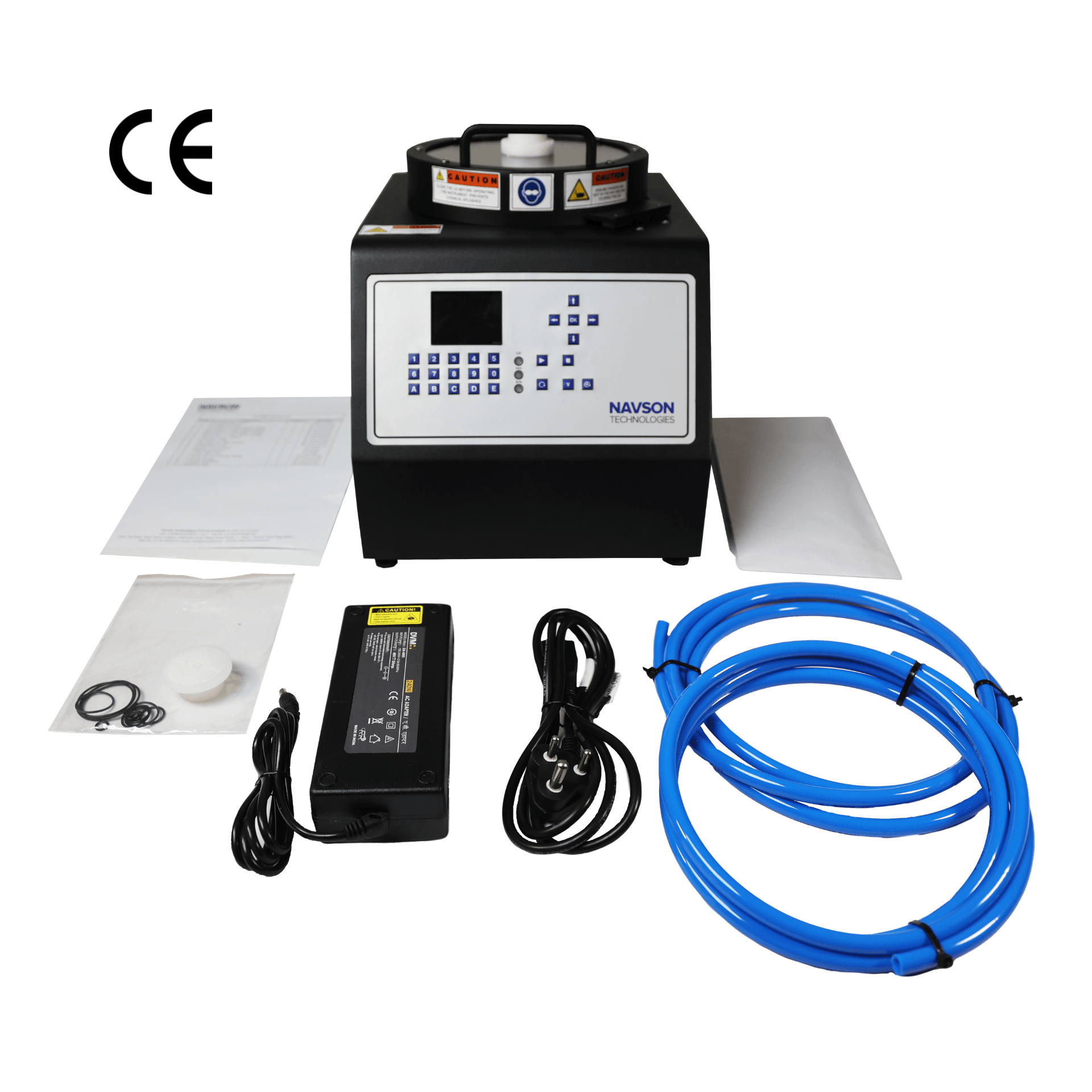

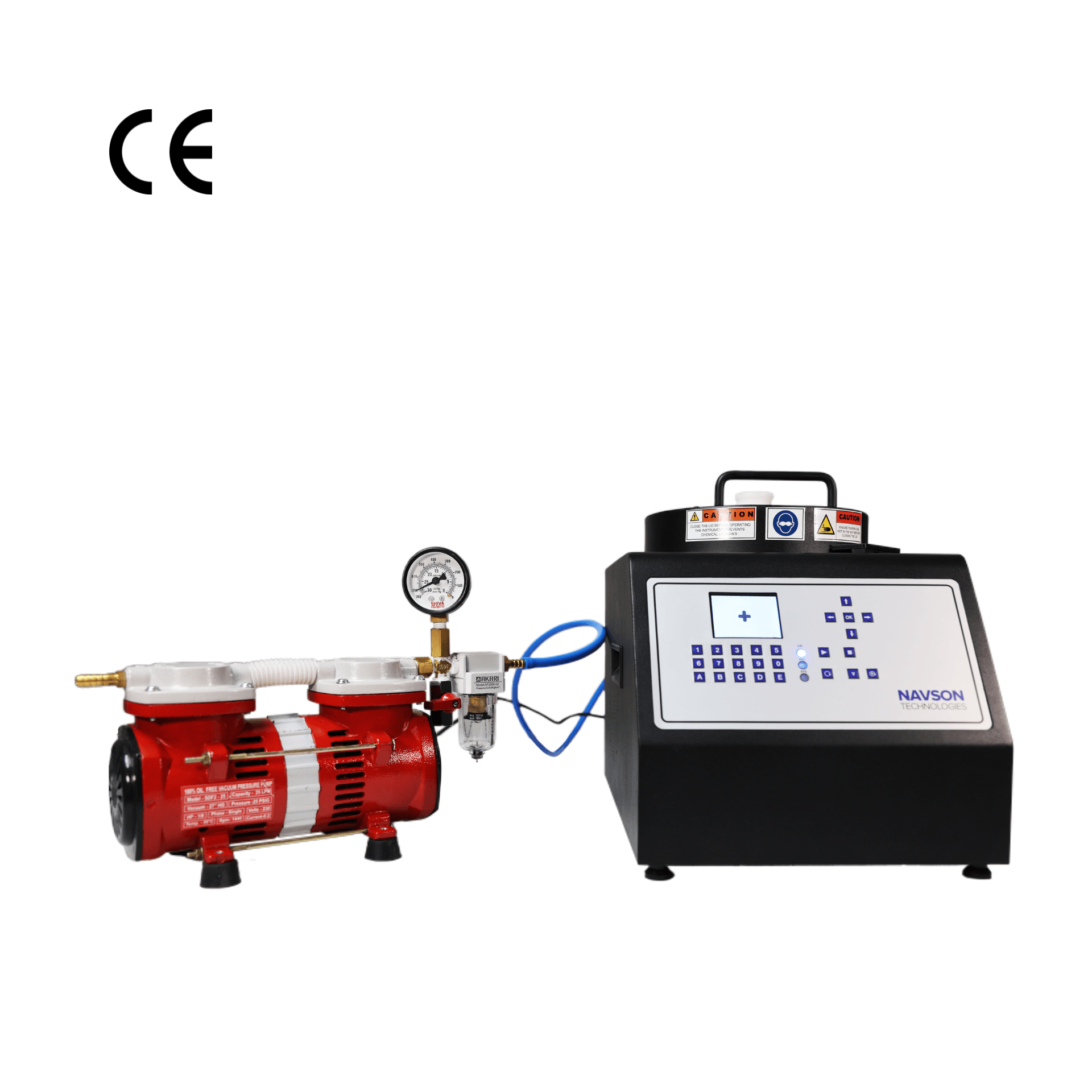

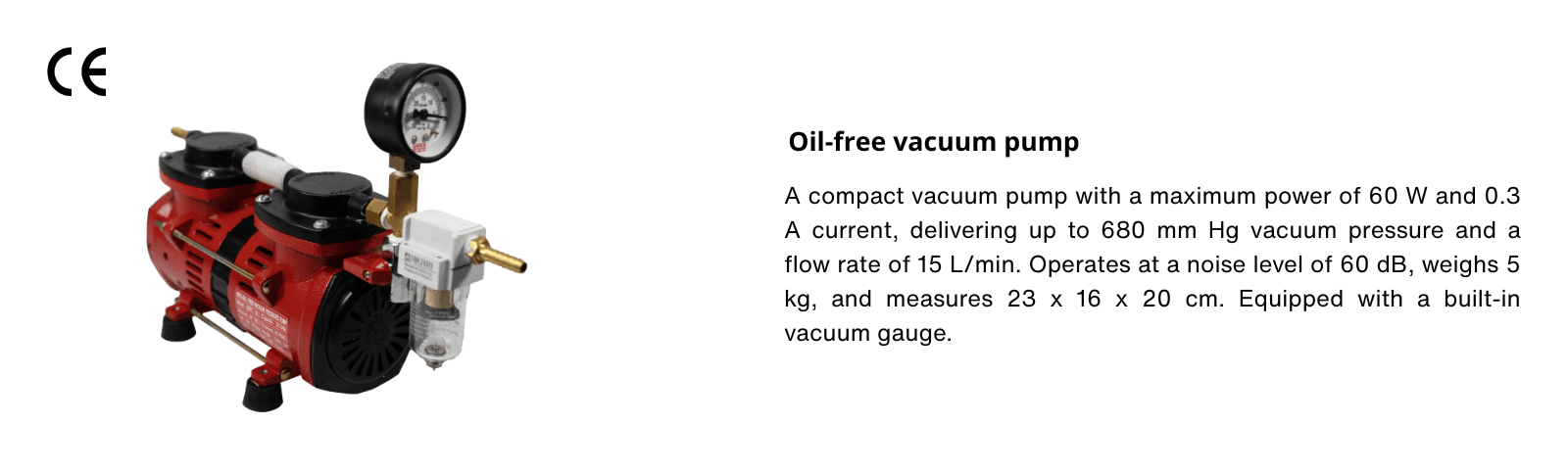

Accessories	Oil‐Free Vacuum Pump

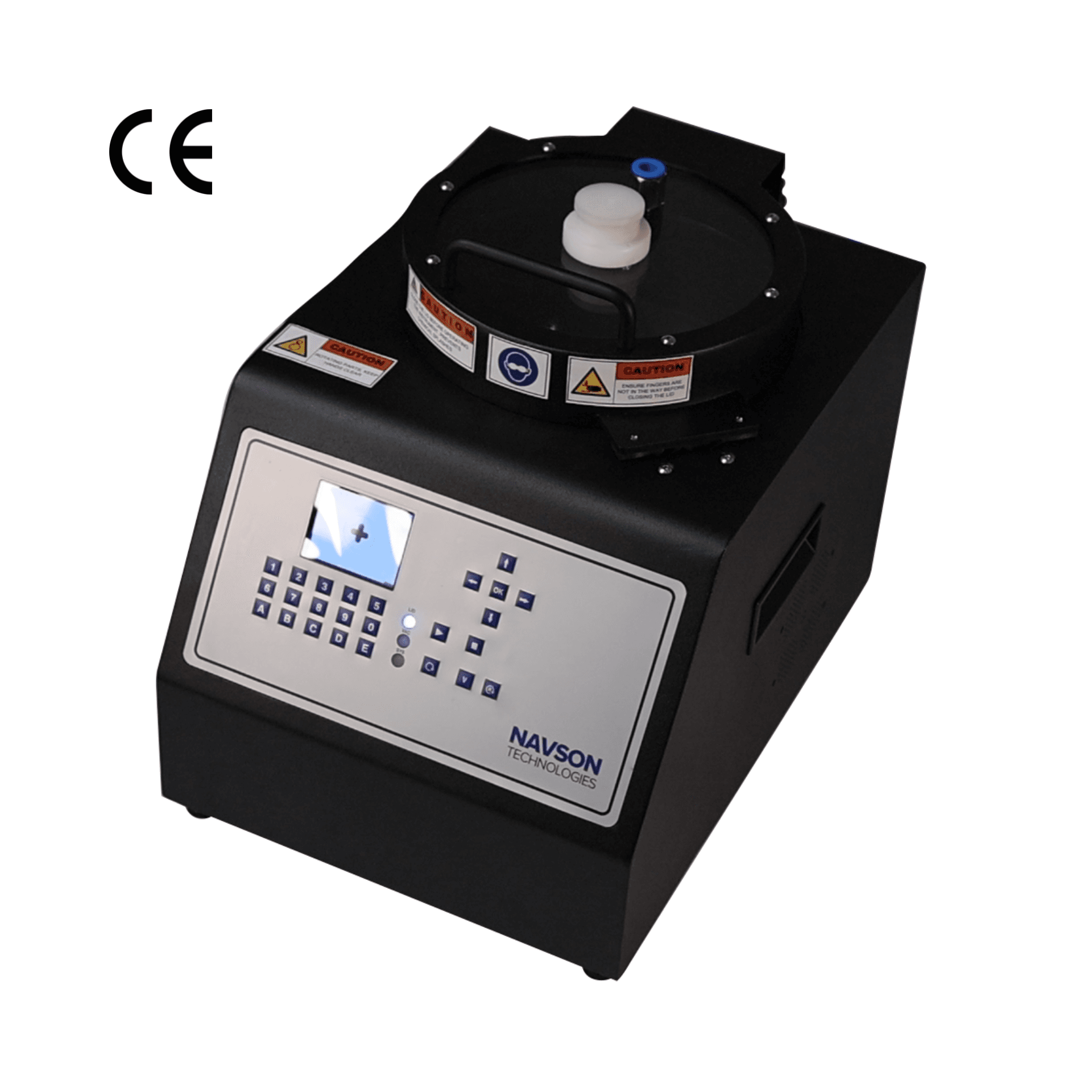

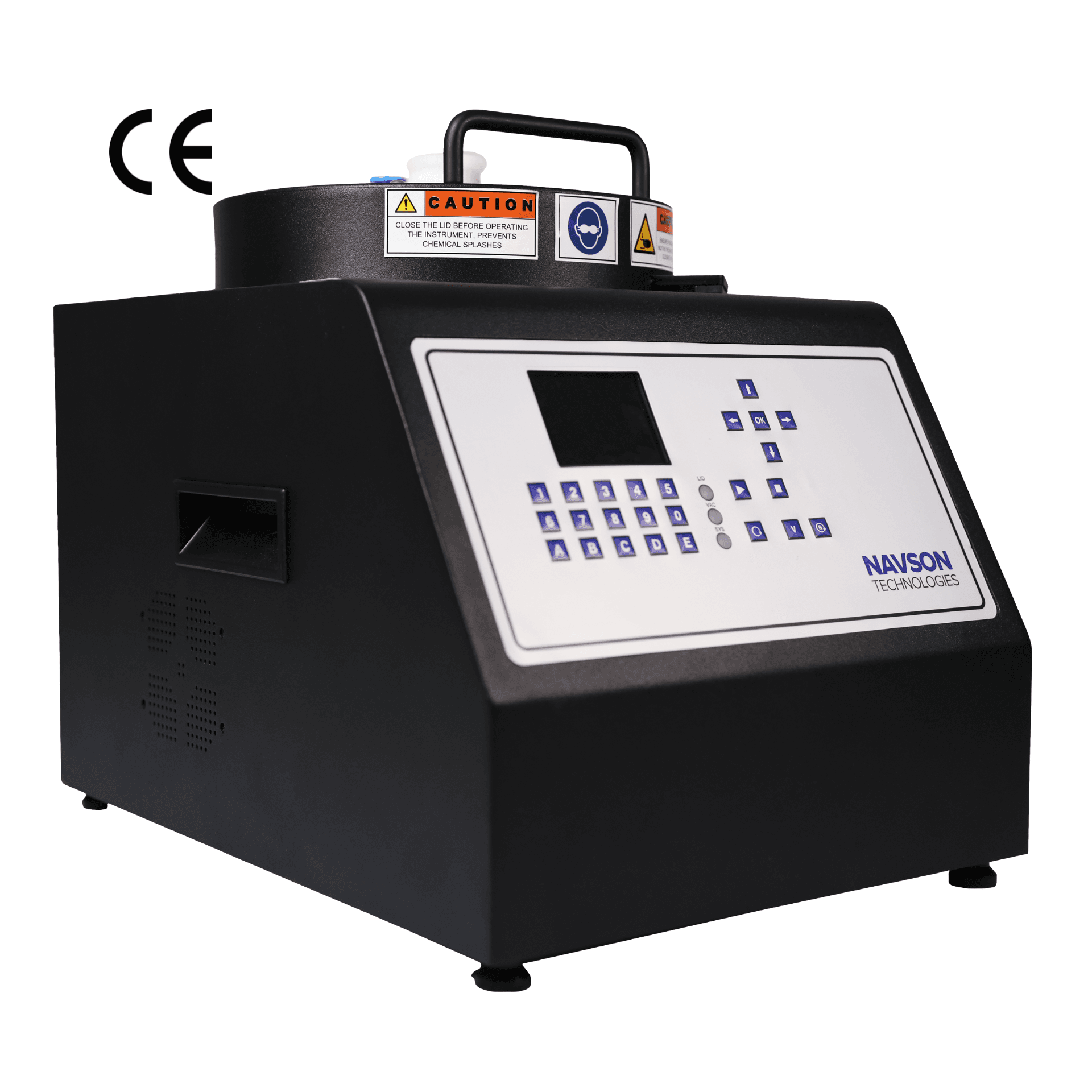

Spin Coater NT10000

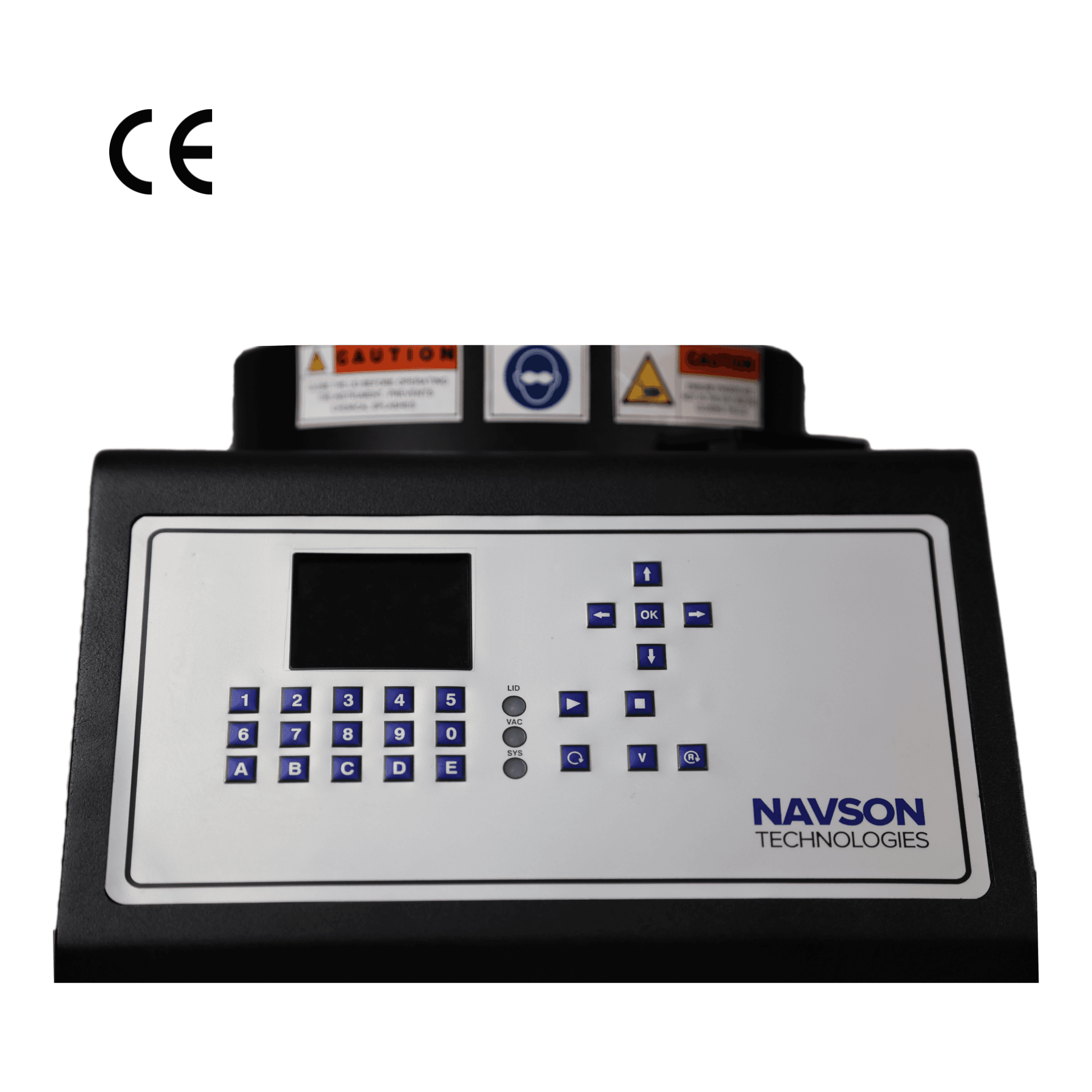

Intuitive Keypad Control
